GaN-on-SiC HEMTs · 5 W to 150 W
High-power GaN.
Ready to simulate.
Nonlinear models for GRF's GaN on SiC HEMTs are now in the Modelithics® COMPLETE Library™ for Keysight ADS and Cadence® AWR Design Environment®.
Eight nonlinear GaN HEMT models, 5 W to 150 W, in the Modelithics COMPLETE Library™
Free* 90-day trial of the Modelithics Guerrilla RF MVP Library, sponsored by Guerrilla RF. Includes amplifier models for many other GRF parts.
Request free model access*With approval and/or valid registration.

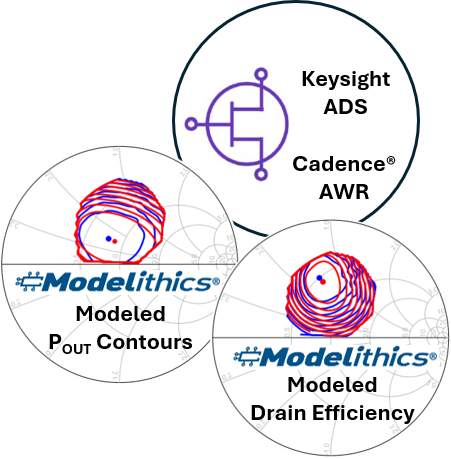

Model vs. Measured Data. Your call.
Integrate the non-linear models directly into Keysight ADS and Cadence AWR, or engage directly with GRF's Applications team for component selection guidance and access to measured datasets.
GRF0005
5 WUnmatched GaN-on-SiC HEMT
GRF0010
15 WUnmatched GaN-on-SiC HEMT
GRF0012
12 WUnmatched GaN-on-SiC HEMT
GRF0020
30 WUnmatched GaN-on-SiC HEMT
GRF0030
50 WUnmatched GaN-on-SiC HEMT
GRF0065
80 WUnmatched GaN-on-SiC HEMT
GRF0090
110 WUnmatched GaN-on-SiC HEMT
GRF0135
150 WUnmatched GaN-on-SiC HEMT
50+ GaN on SiC cores, from bare die to packaged parts.
Available as bare die or in QFN, DFN, air-cavity plastic (ACP) and air-cavity ceramic (ACC) packages, spanning near-DC to 12 GHz.
Latest products
GRF0051
GaN HEMT, 50 Watt P3dB, DC - 6 GHz
Target markets: Navigation · Military · 5G Infrastructure
GRF0110
GaN HEMT Power Transistor, 110 Watt P3dB, DC - 3.7 GHz
Target markets: Navigation · Military · 5G Infrastructure
GRF0150
GaN HEMT Power Transistor, 150 Watt P3dB, DC - 3.2 GHz
Target markets: Navigation · Military · 5G Infrastructure
Find your GaN part
| Product | Min Freq (GHz) | Max Freq (GHz) | Gain (dB) | Psat (dBm) | PAE (%) | Vdd (V) | Package | Modelithics model |
|---|---|---|---|---|---|---|---|---|
| GRF0005 | 0 | 12 | 18.9 | 38.7 | 48.7 | 28-40 | 3.0 QFN-16 | ✓ ADS · AWR |
| GRF0010 | 0 | 8 | 14.5 | 42.0 | 62 | 28-50 | 3.0 QFN-16 | ✓ ADS · AWR |
| GRF0010D | 0 | 8 | 17.3 | 42 | 61.3 | 28-50 | ||
| GRF0012 | 0 | 12 | 12.2 | 41.6 | 59.1 | 28-40 | 3.0 QFN-16 | ✓ ADS · AWR |
| GRF0020 | 0 | 7 | 15.5 | 45.0 | 48 | 28-50 | 3.0 QFN-16 | ✓ ADS · AWR |
| GRF0020D | 0 | 7 | 18.7 | 45.4 | 63.8 | 28-50 | ||
| GRF0030 | 0 | 6 | 15.5 | 47.0 | 54.5 | 28-50 | 3.0 QFN-16 | ✓ ADS · AWR |
| GRF0030D | 0 | 6 | 15.5 | 47.0 | 56 | 28-50 | ||
| GRF0051 | 0 | 6 | 13.8 | 46.5 | 67.3 | 28-50 | NI-360 Air Cavity Ceramic | |
| GRF0065 | 0 | 3.7 | 10 | 48.7 | 50 | 28-50 | 6X3 DFN-14 | ✓ ADS · AWR |
| GRF0090 | 0 | 3.7 | 10 | 49.7 | 56.3 | 28-50 | 6x3 DFN-14 | ✓ ADS · AWR |
| GRF0110 | 0 | 3.7 | 13.8 | 50.9 | 70 | 28-50 | NI-360 Air Cavity Ceramic | |
| GRF0135 | 0 | 3.2 | 13.8 | 52.0 | 57 | 28-50 | 6x3 DFN-14 | ✓ ADS · AWR |
| GRF0150 | 0 | 3.2 | 10.7 | 51.8 | 53 | 28-50 | NI-360 Air Cavity Ceramic | |
| GRF5923 | 0 | 6 | 13.5 | 47 | 50 | 50 | 4.0 QFN-24 | |
| No parts match these filters. | ||||||||
* = Product is in Pre-Production. Contact [email protected] for minimum order quantity. Full specifications, reference conditions and S-parameters are on each product page and in the Guerrilla GaN category table.
Have a Gallium Semi part number? Find its GRF equivalent with the Gallium Semi to GRF Part Conversion Tool.
Don't see the exact part you need?
Tell us what the amplifier has to do (frequency range, output power, signal type, efficiency, linearity, timeline) and our applications team will follow up with a recommendation.
